High Tolerance Galvanized Steel Wire Strand for Prestressed Concrete ISO9001 Certified
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Marine Packing |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 200000tons/Year |
|
Detail Information |
|||
| Model NO.: | 1860MPa | Grade: | Carbon Steel, Stainless Steel |
|---|---|---|---|
| Reel Weight: | 500kg-4tons | Tolerance: | 1% |
| Payment Term: | EXW,Fob,CFR,CIF | Delivery Time: | Have Stock Or Negotiate According To Actual Order |
| MOQ: | Usually One Container, May Be Negotiated By Both | Transport Package: | Standard Marine Packing |
| Specification: | 1.0mm-120mm | Trademark: | XZL |
| Origin: | China | HS Code: | 7312100000 |
| Supply Ability: | 200, 000 Tons/Year | Certification: | ISO, CCC, CE |
| Surface: | Spiral | Technique: | Normalizing, Quenching |
| Application: | Rope, Packaging, Netting, Manufacturing, Fencing, Construction | Alloy Or Not: | Non-alloy |
| Standard: | BS, JIS, GB, ASTM, DIN, AISI | Samples: | US$ 1/kg 1 Kg(Min.Order) | Request Sample |
| Customization: | Available | Customized Request | ||
Product Description

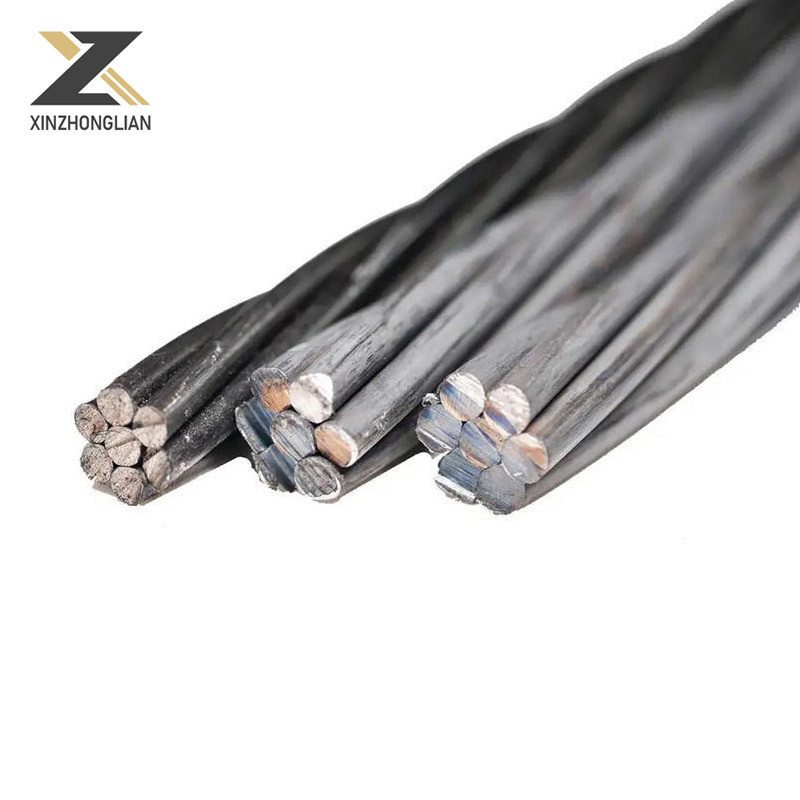

High Tensile Prestressed Concrete Bonded PT Strands Cables Prestressing Steel Strand Wire Price Cable 12.7mm PC Strand
| Product Name | PC Strand |
| Main executive standards | GB/T5224,ASTMA416,BS5896,JIS3536,ISO6934,EN10138 or as per the technology agreement decided by both sides after negotiation |
| Specification | 1x7 wire,1x2 wire,1x3 wire,1x19 wire 9.53mm,12.7mm,15.2mm,15.7mm,17.8mm,21.8mm |
| Tolerance | 0.4-0.15 |

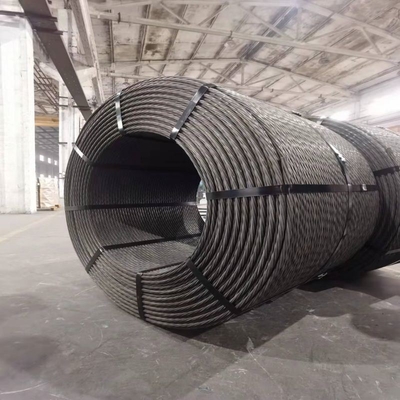

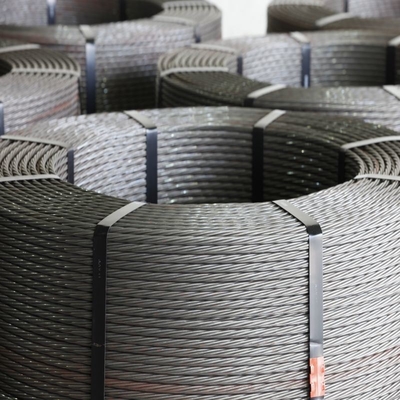

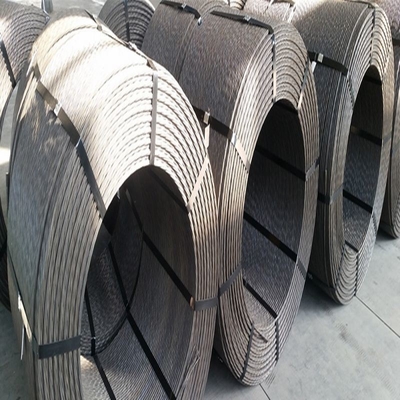

| Product packaging | nner diameter:760mm |
| Outer diameter:1400mm | |
| Width of coil:760mm | |
| Weight of coil:2.5-3.5 tons | |

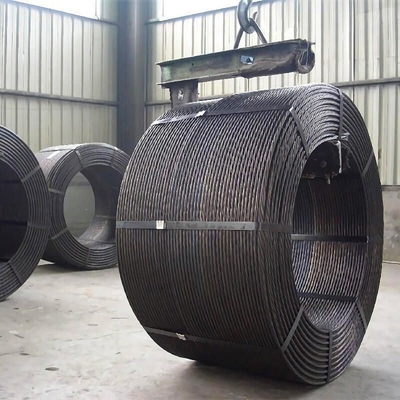

| Packaging steps | Coils are wrapped by 8 steel strips →wrapped by waterproof cloth →wrapped by 8 steel strips (6+2)→ added with wood pallet |
| Application | PC Strands are mainly used in prestressed concrete structure reinforcement,such as large-span bridges on railway and highway,overhead crane beam,rock-soil anchoring project,multi-storey industrial buildings, stadiums,coal mines,etc |
| Nominal Dia of Strand | Number of Wires in Strands | Nominal Dia of Coated Wires | Weight of Strand | Minimum Breaking Strength of Strand, LBS | ||
| Inch (mm) | Inch (mm) | Lb/1000ft (Kg/1000m) | Utilities Grade | High Strength Grade | Extra-High Strength Grade | |
| 1/4 (6.35) | 7 | 0.080 (2.03) | 121 (180) | - | 4,750 | 6,650 |
| 9/32 (7.14) | 7 | 0.093 (2.36) | 164 (244) | 4,600 | 6,400 | 8,950 |
| 5/16 (7.94) | 7 | 0.104 (2.64) | 205 (305) | - | 8,000 | 11,200 |
| 5/16 (7.94) | 7 | 0.109 (2.77) | 225 (335) | 6,000 | - | - |
| 3/8 (9.52) | 7 | 0.120 (3.05) | 273 (406) | 11,500 | 10,800 | 15,400 |
| 7/16 (11.11) | 7 | 0.145 (3.68) | 399 (594) | 18,000 | 14,500 | 20,800 |
| 1/2 (12.70) | 7 | 0.165 (4.19) | 517 (769) | 25,000 | 18,800 | 26,900 |
| 1/2 (12.70) | 19 | 0.100 (2.54) | 504 (750) | - | 19,100 | 26,700 |
| 9/16 (14.29) | 7 | 0.188 (4.78) | 671 (999) | - | 24,500 | 35,000 |
| 9/16 (14.29) | 19 | 0.113 (2.87) | 637 (948) | - | 24,100 | 33,700 |
| 5/8 (15.88) | 7 | 0.207 (5.26) | 813 (1210) | - | 29,600 | 42,400 |
| 5/8 (15.88) | 19 | 0.125 (3.18) | 796 (1185) | - | 28,100 | 40,200 |
| 3/4 (19.05) | 19 | 0.150 (3.81) | 1,155 (1719) | - | 40,800 | 58,300 |
| 7/8 (22.22) | 19 | 0.177 (4.50) | 1,581 (2553) | - | 55,800 | 79,700 |
| 1 (25.40) | 19 | 0.200 (5.08) | 2,073 (3085) | - | 73,200 | 104,500 |
| Diameter | Number of wires &diameter | Approx.Metallic Area | Weight | Minimum Breaking Load-kN | ||
| (mm) | (mm) | (sq.mm | (kg/1000m | Grade 1100 | Grade 1300 | Grade 1500 |
| 5 | 7x1.70 | 15.9 | 130 | 16.5 | 19.5 | 22.5 |
| 6 | 7x2.10 | 24.2 | 190 | 25.0 | 30.0 | 34.5 |
| 7 | 7x2.40 | 31.7 | 250 | 33.0 | 39.0 | 45.0 |
| 8 | 7x2.80 | 43.1 | 340 | 45.0 | 53.0 | 61.5 |
| 9 | 7x3.00 | 49.5 | 390 | 52.0 | 61.0 | 70.5 |
| 10 | 7x3.60 | 71.3 | 560 | 74.5 | 88.0 | 101.5 |
| 12 | 7x4.20 | 97.0 | 760 | 101.0 | 120.0 | 138.0 |
| Diameter | Number of wires &diameter | Approx.Metallic Area | Weight | Minimum Breaking Load -Ibs | ||
| (Inches) | (Inches) | (sq.Inches) | (Ilbs/1000ft) | Grade 160 | Grade 180 | Grade 220 |
| 3/16" | 7x0.065 | 0.02 | 79 | 3500 | 4000 | 4800 |
| 1/4" | 7x0.083 | 0.04 | 129 | 5700 | 6400 | 7900 |
| 9/32" | 7x0.095 | 0.05 | 169 | 7500 | 8500 | 10300 |
| 5/16" | 7x0.109 | 0.07 | 223 | 9900 | 11100 | 13600 |
| 3/8" | 7x0.120 | 0.08 | 270 | 12000 | 13500 | 16500 |
| 7/16" | 7x0.144 | 0.11 | 389 | 17300 | 19500 | 23800 |
| 1/2" | 7x0.165 | 0.15 | 511 | 22700 | 25500 | 31200 |
| 5/8" | 7x0.207 | 0.24 | 813 | 35800 | 40200 | 49200 |
The main uses of PC steel strandsPC steel strands are mainly used for the reinforcement of prestressed concrete structures, such as large-span railway and highway bridges, large bridges, silos, buildings, dams, floor slabs, foundations, large concrete containers, atomic reactor buildings, sports venues, airport hangers, prefabricated sections, crane beams, anchors, multi-layer industrial buildings, etc.
PC steel stands for "Prestressed Concrete Steel," which refers to high-strength steel wire or strands that are used in the construction of prestressed concrete structures. In Prestressed concrete, the steel wire or strands are tensioned before the concrete is poured, creating compressive forces within the concrete that offset the tensile stresses that the structure may experience during use.
We will test the goods before delivery, and also accept the quality inspection of a third party ppointed by the customer.
Our logistics department is always updated with the special packaging requirements for export consignments.
Our logistics has a good tracking system. You will be kept informed of the shipping status of your shipment until you pick it up.
Qingdao Xinzhonglian Steel Co., Ltd. is located in Qingdao,China. We are a manufacturer and exporter specialized in the research, production, retail, wholesale, packaging, after-sales of metal materials. We have been engaged in export trade for more than 20 years and have rich experience in this field.
The company adheres to the business philosophy of "service creates value, integrity creates brand", and the corporate spirit of "pioneering and enterprising, tenacious and hardworking, seeking truth and innovation, and win-win cooperation". Based on integrity and with the purpose of providing good professional services, we use our sincere and rigorous management and professional dedication to provide excellent services and high-quality products to our esteemed domestic and
foreign customers in terms of quality, price, and other aspects.
Our major products including Carbon Steel Plate, Carbon Steel Coil, Carbon Steel Pipe, Carbon Steel Bar, Stainless steel plate,Stainless steel coil , Stainless steel pipe, color coated coil, color tile, galvanized sheet, galvanized coil, Galvanized roofing, galvanized zinc,etc. Relying on various products, large inventory, high quality, low price, short delivery time and good after-sales service, and many other competitive advantages, our products are well sold in China and exported to many countries, such as South Korea, Japan, Russia, Germany, Britain, Austria, Czech Republic, Hungary, Netherlands, Slovenia, Bulgaria, Egypt, Saudi Arabia, Iran, Kuwait, UAE, Turkey, Israel, Syria, Lebanon, Jordan, Yemen, Cyprus, Philippines, Vietnam, and Malaysia...
Qingdao Xinzhonglian Steel Co., Ltd. company always insist on the tenet and business spirit of "survive by quality, develop by reputation", and take quality as the foundation and honesty as the first. At the same time, Xinzhonglian Steel also adheres to the concept of a win-win situation, focusing on customers, and looks forward to becoming your reliable partner.Want to Know more details about this product
